TECTUM DESIGNART - Lines Direct-Attach Walls

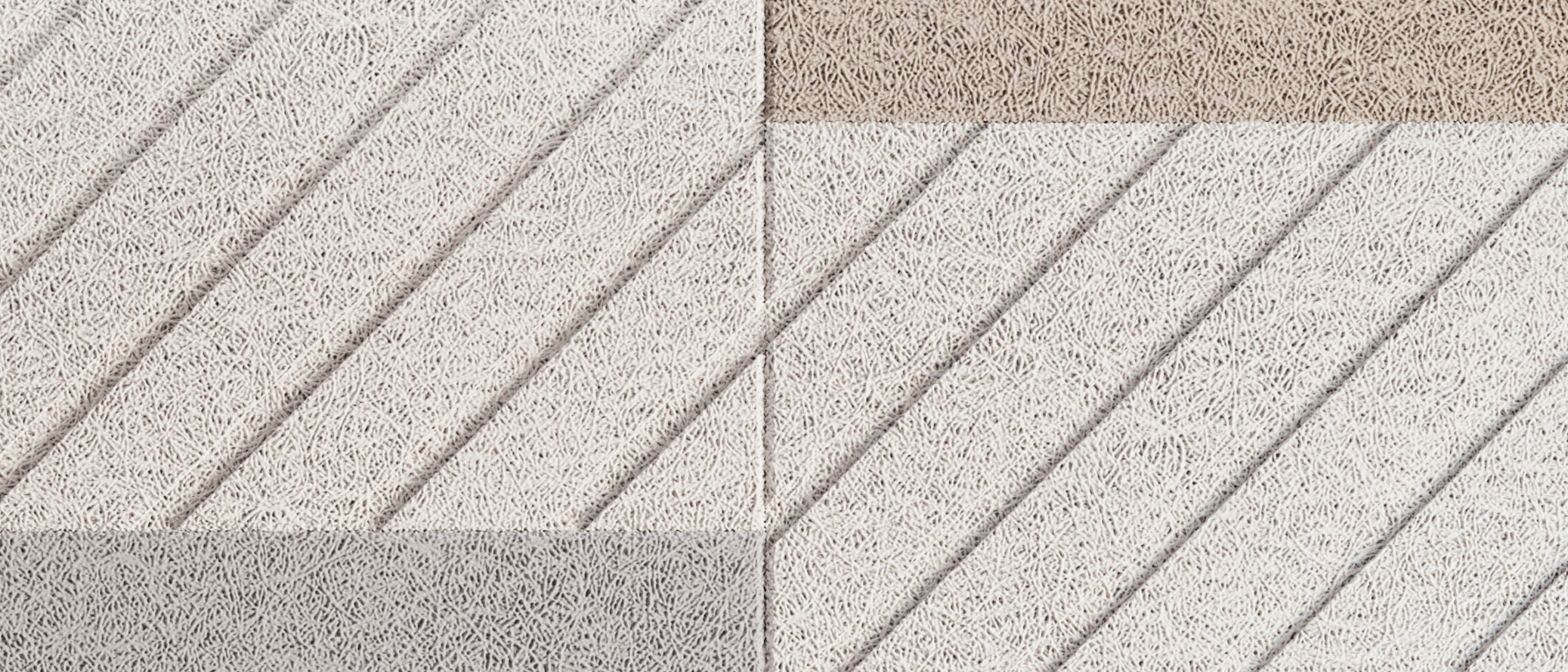

Transform interior spaces with a three dimensional visual by combining texture, routed patterns, and colors with sustainable, acoustical TECTUM DESIGNART – Lines Direct-Attach Wall Panels.

Key Features & Performance

  • TECTUM Direct-Attach now has UL® Certified acoustics with acoustical testing and reporting that align with industry-wide best practices
  • TECTUM High NRC wall panels have a factory-applied acoustical backer, offering increased sound absorption while saving time and labor
  • Sustainable Beyond Standard: Custom sizes in 1" thickness and all standard panels are part of the SUSTAIN portfolio and meet the most stringent industry sustainability compliance standards today
  • Now you can install 1"-thick TECTUM on Trusses and I-Beams for added acoustics while maintaining an exposed structure visual on the deck
  • Now, long edges beveled, short edges beveled available as a standard option
  • Great retrofit solution for noise reduction
  • Excellent sound absorption – NRC up to 0.85 (1" panel, C-40 Mounting)
  • Can be field painted up to 6 times without impacting acoustic or fire performance
  • Variety of made-to-order color options available
  • Can be mechanically fastened to a wide variety of surfaces including masonry, drywall, drywall grid system, wood, trusses, I-Beams, and more
  • USDA Biobased content: 98%
Material
Materials
TECTUM Wood Fiber
Acoustics
NRC Rating A Mounting
0.40
NRC Rating D-20 Mounting
0.45
NRC Rating C-20 Mounting
0.80
NRC Rating C-40 Mounting
0.85
Fire
Fire Performance
Class A
Durability
Impact Resistance

Surface impact based on the Striking Ball Impact Test, modified ASTM D1037 procedure.

Scratch Resistance

Excellent resistance to surface scratching, scuffing or chipping as per Hess Rake Test.

Disinfectability
Fog

May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​

Sustainability
USDA certified biobased content

This product is part of the USDA BioPreferred Program and it's biobased content has been independently laboratory tested and third-party certified.

98%
Special Applications
Music / Language Room
Swimming / Hydro-therapy
FAST134 means standard specialty products in less than 4 weeks.
Complimentary ceiling design & pre-construction service.
Sustainability Profile
LEED  •  WELL  •  Living Building Challenge
Recycled/extended producer resp. FSC (for wood)
Energy Management Recycled Content
Construction Waste Sourcing of Raw Materials
Regional Materials
Location Dependent
Material Ingredient Reporting
Design for Flexibility Low emitting/materials
EPD Lighting Quality
Biobased Materials Acoustics
