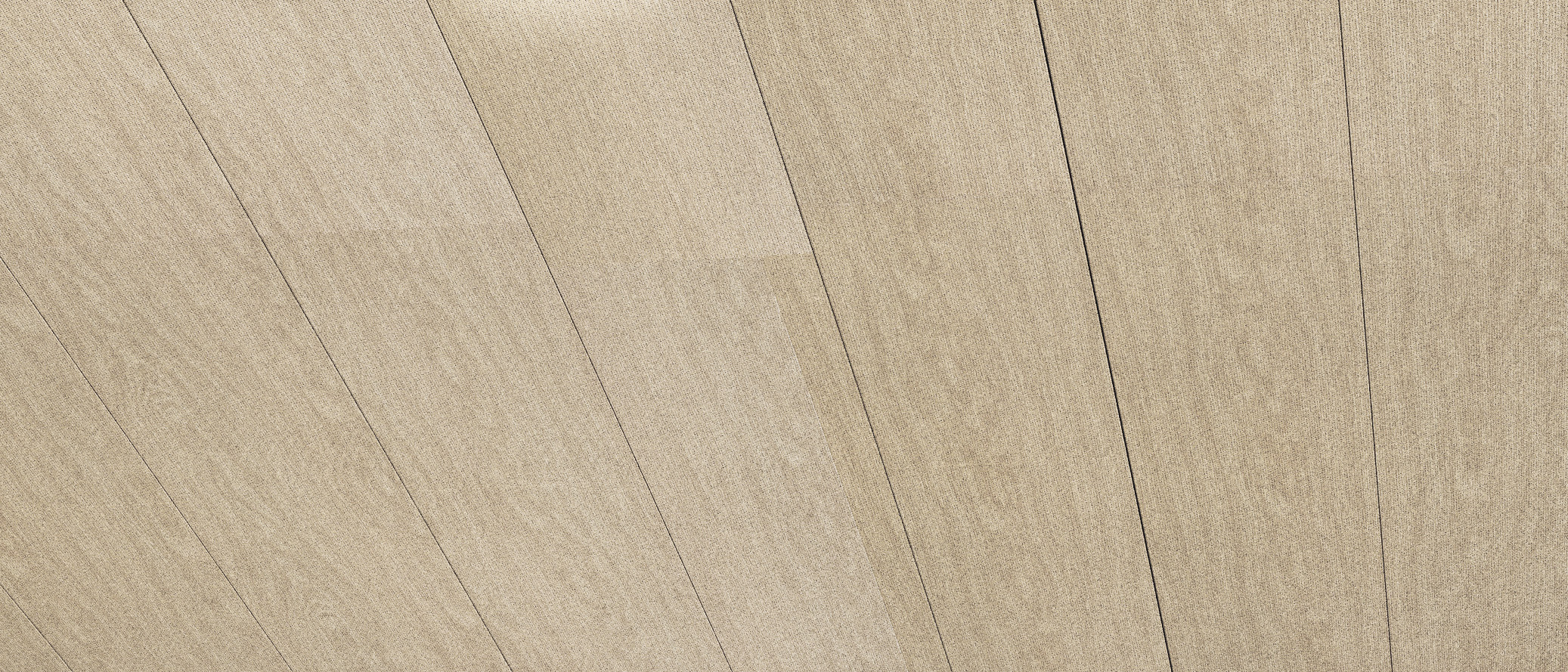

METALWORKS Linear - Synchro Ceiling Planks

NRC (Noise Reduction Coefficient) is a standard measurement for a material’s acoustical absorption ranging from 0.00 (no absorption) to 1.00 (total absorption).

CAC (Ceiling Attenuation Class) is a standard measurement of a ceiling system’s ability to block sound between two closed spaces. CAC values of 35 or greater are recommended to achieve speech privacy.

NIC (Noise Isolation Class) is a standard measurement of total sound attenuation between two closed spaces. It considers the ceiling, wall, and other interior finishes.

AC (Articulation Class) is a standard measurement of a ceiling system’s ability to attenuate sound within a large open plan space. AC values of 170 or more are recommended to reduce speech distraction.

Sabin is the unit of measure for total sound absorption of an acoustical object (like blades, baffles, clouds, and canopies).

Now, standard products available in 4 weeks or less provide a variety of options and offer short lead times to fit most budgets. Standard sizes and colors mean no shop drawings or submittal sample approvals. Package with the diverse portfolio of Armstrong solutions.

Want to learn more? Check out the FAST Program for Specialty Ceilings.

Performance

  • Nominal 2", 4", 6", 9", 11", and 13" wide, M1 only planks now available for exterior applications in four standard metal finishes and 17 Effects™ finishes​
  • Available for exterior applications, tested to meet wind uplift Classes 30, 60, and 90​
  • Planks easily snap into upper hooks of new Main Beam Carrier 2 (item 7277MF)
  • Discontinuous ceilings possible with AXIOM trim or coordinating Effects trim using the Adjustable Trim Clip
  • CLEANASSURE family of products – includes disinfectable planks, suspension systems, and trim
  • Planks and suspension system tested and approved for seismic areas per ASTM E580, AC 156
  • Acceptance Criteria for Seismic Qualification Testing of Non-structural Components, and ASTM 3118
  • Achieve high sound absorption for increased acoustical performance with perforated M2 planks – 0.70 NRC
  • Integrate field-cut linear lighting fixtures from Backlight® srl and XAL®; pre-engineered AXIOM Indirect Field Light Coves for Specialty Ceilings tested for fit and finish to achieve predictable lighting performance
Fire
  Fire Performance Class A
Light Reflectance

Light reflectance average of 0.83 or greater. White only.
83%
Recycled Content

Recycled content range.
Up to 25%
Sag/Humidity Resistance

Ceiling panels maintain humidity and sag resistance.
Inherent
Disinfectability
Fog

May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Spray

May be sprayed following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Wipe

May be wiped following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines.
Durability
Water Repellent

Product resists water for 15 minutes allowing proper cleaning for infection control.
Soil Resistance

Excellent resistance to dirt and/or grease for lasting value and performance.
Impact Resistance

Surface impact based on the Striking Ball Impact Test, modified ASTM D1037 procedure.
Scratch Resistance

Excellent resistance to surface scratching, scuffing or chipping as per Hess Rake Test.
Washability

Offers superior wash resistance without compromising panel finish integrity, using a washability tester as per ATSM D4828.
Scrubbability

Withstands up to 150 scrub cycles using a scrubbability tester as per ATSM 02486.
Special Applications
  • Exterior

Sustainability Profile

Recycled Content
Up To 25%
SUSTAINABLE PRODUCT SEARCH TOOL usGreenGenie_alt
Get Started

Project Gallery

Project Gallery

METALWORKS Linear Synchro Exterior
Project Gallery

METALWORKS Linear Synchro Wall 3
Project Gallery

METALWORKS Linear Synchro Wall and Ceiling
Project Gallery

MetalWorks Linear Synchro Wall 2
Project Gallery

METALWORKS Linear Synchro Auditorium

Installation

How to and Guides

Accessories

5574
Pieces Per Carton
  • 10
Flex Carrier Molding
7113
Pieces Per Carton
  • 40
Spreader Hold Down
Length
  • 10-5/8 in
Width
  • 1.25 in
7237S3
7237S3
MW Linear Synchro Cut Plank Support Bracket
7277BL
7277BL
Pieces Per Carton
  • 10
MW Linear Main Beam Carrier 2 (MBC2) - Tech Black
7277MF
7277MF
Pieces Per Carton
  • 10
MW Linear Main Beam Carrier 2 (MBC2) - Mill Finish
8161
Pieces Per Carton
  • 50
MetalWorks Linear - Pressure Spring
8233W02M1
8233W02M1
Pieces Per Carton
  • 10
End-Cap 2"
Length
  • 1 in
Width
  • 2 in
8233W04M1
8233W04M1
Pieces Per Carton
  • 10
End-Cap 4"
Length
  • 1 in
Width
  • 4 in
8233W06M1
8233W06M1
Pieces Per Carton
  • 10
End-Cap 6"
Length
  • 1 in
Width
  • 6 in
8233W09M1
8233W09M1
Pieces Per Carton
  • 10
End-Cap 9"
Length
  • 1 in
Width
  • 9 in
8233W11M1
8233W11M1
Pieces Per Carton
  • 10
End-Cap 11"
Length
  • 1 in
Width
  • 11 in
8233W13M1
8233W13M1
Pieces Per Carton
  • 10
End-Cap 13"
Length
  • 1 in
Width
  • 13 in
8243W02
8243W02
Pieces Per Carton
  • 10
Splice 2"
8243W04
8243W04
Pieces Per Carton
  • 10
Splice 4"
8243W06
8243W06
Pieces Per Carton
  • 10
Splice 6"
XL8926
XL8926
Component Type
  • Cross Tee
Pieces Per Carton
  • 36
2ft Drywall Cross Tee
Length
  • 24 in
Height
  • 1-1/2 in
