New seamless acoustical ceiling and wall system that looks like drywall, but offers the performance of TOTAL ACOUSTICS.

NRC (Noise Reduction Coefficient) is a standard measurement for a material’s acoustical absorption ranging from 0.00 (no absorption) to 1.00 (total absorption).

CAC (Ceiling Attenuation Class) is a standard measurement of a ceiling system’s ability to block sound between two closed spaces. CAC values of 35 or greater are recommended to achieve speech privacy.

NIC (Noise Isolation Class) is a standard measurement of total sound attenuation between two closed spaces. It considers the ceiling, wall, and other interior finishes.

AC (Articulation Class) is a standard measurement of a ceiling system’s ability to attenuate sound within a large open plan space. AC values of 170 or more are recommended to reduce speech distraction.

Sabin is the unit of measure for total sound absorption of an acoustical object (like blades, baffles, clouds, and canopies).

Now, standard products available in 4 weeks or less provide a variety of options and offer short lead times to fit most budgets. Standard sizes and colors mean no shop drawings or submittal sample approvals. Package with the diverse portfolio of Armstrong solutions.

Want to learn more? Check out the FAST Program for Specialty Ceilings.

Performance

  • Look of drywall in a seamless acoustical ceiling and wall system (install on walls above 7 feet to prevent damage)
  • Get total noise control and floor plan versatility with TOTAL ACOUSTICS ceiling panel options: NRC + CAC = TOTAL ACOUSTICS Performance
  • Up to 0.80 NRC/ CAC 46
  • Finished White ACOUSTIBUILT panels are part of the SUSTAIN portfolio and meet the most stringent industry sustainability compliance standards today
  • Smooth non-directional, monolithic, drywall-like visual
  • Add a hint of color, tailored to your design palette
  • Integrates with AXIOM Direct & Indirect Light Coves for ACOUSTIBUILT
  • Wall Reveal for ACOUSTIBUILT provides crisp edge detailing from drywall to ACOUSTIBUILT panels for wall applications
  • Use Drywall Grid SIMPLESOFFIT framing system for faster, easier soffit construction
  • Install on Drywall Grid System (DGS) in any room, any size flat or sloped
  • Similar installation and finishing methods to drywall ceilings
  • CLEANASSURE family of products –includes disinfectable panels, suspension systems, and trim
  • Mold and mildew-resistant surface
  • ACOUSTIBUILT is intended for spaces desiring a Level 4 equivalent drywall finish
  • Easier to install than acoustical plaster at a lower cost
  • Can be installed with most any drywall compatible light fixture including those fixtures from our partners: Axis, USAI, XAL, Price
  • Improves STC of interior stud/drywall partition systems by up to 6 points*
  • Seamless integration with VIDASHIELD UV24 Air Purification System to improve indoor air quality
Acoustics

Acoustical options available.

  Sound Absorption (NRC)

A measure for rating the overall sound absorption of a material when used in an enclosed architectural space where sound is reflected at many angles of incidence. A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance.
0.80
  Sound Blocking (CAC)

A measure for rating the performance of a ceiling system as a barrier to airborne sound transmission through a common plenum between adjacent closed spaces. A ceiling system with a CAC < 25 is considered low performance, whereas one with CAC of 35 or higher is high performance.
46
Fire
  Fire Performance Class A (UL)
Light Reflectance

Light reflectance average of 0.83 or greater. White only.
Up to 87%
USDA certified biobased content

This product is part of the USDA BioPreferred Program and it's biobased content has been independently laboratory tested and third-party certified.
95%
Sag/Humidity Resistance

Ceiling panels maintain humidity and sag resistance.
HumiGuard Plus
Disinfectability
Fog

May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Spray

May be sprayed following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Special Applications
  • Exposed Structure

Sustainability Profile

Recyclable Through Armstrong Recycling Program usRecycle_alt
Learn More
SUSTAINABLE PRODUCT SEARCH TOOL usGreenGenie_alt
Get Started
High Performance Sustainable Ceiling Systems usSustain_alt
Learn More
Living Building Challenge Compliant usDeclare_alt
Learn More
USDA BIOPREFERRED® PROGRAM
LEARN MORE

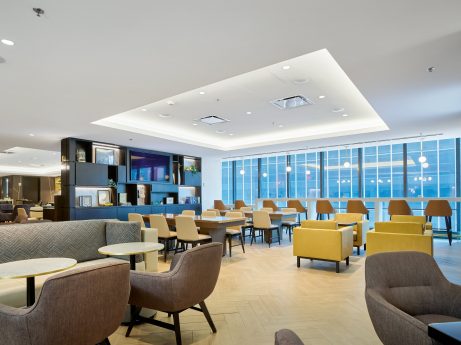

Project Gallery

Project Gallery

Armstrong VidaShield UV24 Air Purification System with ACOUSTIBuilt Rendering
Project Gallery

Newark High School Auditorium
Project Gallery

Beiersdorf
Project Gallery

GWWO Architects
Project Gallery

MetalWorks Clip-on Sequels Rendering
Project Gallery

Worcester Library
Project Gallery

REGENXBIO Regional Office
Project Gallery

Marriott Marquis Hotel
Project Gallery

Armstrong World Industries Living Lab
Project Gallery

BancFirst Headquarters
Project Gallery

Wall Reveals for Drywall and Acoustibuilt Seamless Acoustical Walls
Project Gallery

Monsignor Farrell High School Brother Henry S. Wright Learning Commons

Videos

Installation

How to and Guides

  • One Million Lineal FT of Soffit Framing

    We build it better even when your project involves one million lineal feet of soffit framing. See how our Man on the Street, John Dose, provides technical expertise specific to the job in this project walk-through that highlights Armstrong Drywall G

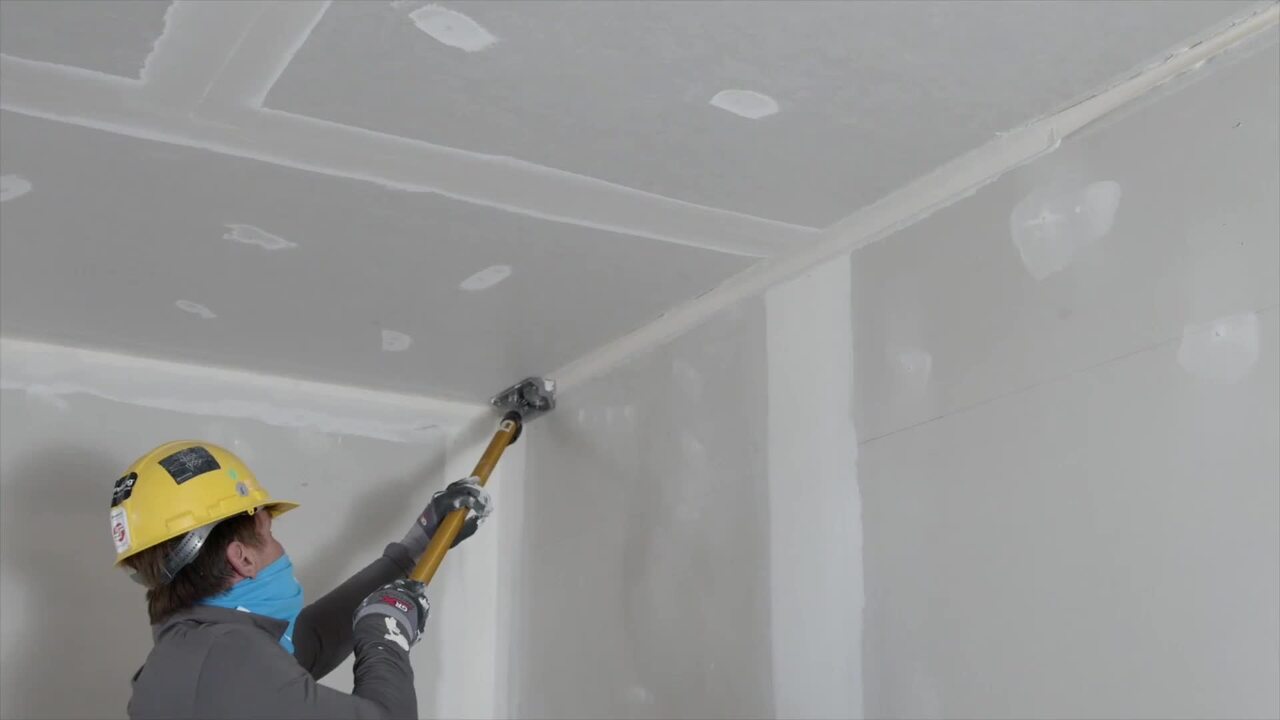

  • ACOUSTIBUILT Seamless Ceiling System Installation

    Learn how to install an ACOUSTIBUILT seamless ceiling system on your next project in this step-by-step video that reviews installing grid and panels, finishing joints and fasteners, and spraying the fine texture finish.

Accessories

DGSLLACBTK120
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 10’ Trim Kit
Length
  • 120"
DGSLLACBTK24
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 2’ Trim Kit
Length
  • 24"
DGSLLACBTK30
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 2’-6" Trim Kit
Length
  • 30"
DGSLLACBTK48
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 4’ Trim Kit
Length
  • 48"
DGSLLACBTK60
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 5’ Trim Kit
Length
  • 60"
DGSLLACBTK72
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 6’ Trim Kit
Length
  • 72"
DGSLLACBTK90
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 7.6’ Trim Kit
Length
  • 90"
DGSLLACBTK96
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting 8’ Trim Kit
Length
  • 96"
DGSLLACBTKCON
Component Type
  • Installation Kit
Pieces Per Carton
  • 1
AcoustiBuilt Linear Lighting Continuous Trim Kit
Length
  • 120"
7852
7852
Component Type
  • Molding
Pieces Per Carton
  • 20
10ft F Molding for 1/2" Gypsum
Length
  • 120"
Height
  • 1-3/16"
7856
7856
Component Type
  • Molding
Pieces Per Carton
  • 20
10ft F Molding for 5/8" Gypsum
Length
  • 120"
Height
  • 1-1/4"
7857
7857
Component Type
  • Molding
Pieces Per Carton
  • 30
12ft Reverse Angle Molding
Length
  • 144"
Height
  • 15/16"
7858
7858
Component Type
  • Molding
Pieces Per Carton
  • 20
12ft Reverse Angle Molding
Length
  • 144"
Height
  • 15/16"
AXM34CUR
AXM34CUR
Component Type
  • Molding
Pieces Per Carton
  • 1
3/4 in Axiom Wall Molding Curved-No Axiom Reveal
Length
  • 120"
Height
  • 1"
Width
  • 3/4"
AXM5050CUR
AXM5050CUR
Component Type
  • Molding
Pieces Per Carton
  • 1
Axiom Shadow Wall Molding - Curved-No Axiom Reveal
Length
  • 120"
Height
  • 3/4"
Width
  • 3/4"
AXM5075CUR
AXM5075CUR
Component Type
  • Molding
Pieces Per Carton
  • 1
Axiom Shadow Wall Molding - Curved-No Axiom Reveal
Length
  • 120"
Height
  • 3/4"
Width
  • 3/4"
AXM7575CUR
AXM7575CUR
Component Type
  • Molding
Pieces Per Carton
  • 1
Axiom Shadow Wall Molding - Curved-No Axiom Reveal
Length
  • 120"
Height
  • 3/4"
Width
  • 3/4"
AXMCUR
AXMCUR
Component Type
  • Molding
Pieces Per Carton
  • 1
3/4 in Axiom Wall Molding Curved-with Axiom Reveal
Length
  • 120"
Height
  • 1"
Width
  • 3/4"
HD7801G90
HD7801G90
Component Type
  • Molding
Pieces Per Carton
  • 30
10ft Hemmed Angle Molding
Length
  • 120"
Height
  • 7/8"
Width
  • 15/16"
KAM10
KAM10
Component Type
  • Molding
Pieces Per Carton
  • 20
10ft Knurled Angle Molding 1-1/4" Face
Length
  • 120"
Height
  • 1-1/4"
KAM12
KAM12
Component Type
  • Molding
Pieces Per Carton
  • 10
12ft Knurled Angle Molding 1-1/4" Face
Length
  • 144"
Height
  • 1-1/4"
KAM12G90
KAM12G90
Component Type
  • Molding
Pieces Per Carton
  • 30
12ft Knurled Angle Molding 1-1/4" Face
Length
  • 144"
Height
  • 1-1/4"
KAM1510
KAM1510
Component Type
  • Molding
Pieces Per Carton
  • 10
10ft Knurled Angle Molding 1-1/2" Face
Length
  • 120"
Height
  • 1-1/2"
KAM151020
KAM151020
Component Type
  • Molding
Pieces Per Carton
  • 10
10ft Knurled Angle Molding 1-1/2" Face
Length
  • 120"
KAM151020EQ
KAM151020EQ
Component Type
  • Molding
Pieces Per Carton
  • 10
10ft Knurled Angle Molding 1-1/2" Face
Length
  • 120"
KAM1512
KAM1512
Component Type
  • Molding
Pieces Per Carton
  • 20
12ft Knurled Angle Molding 1-1/2" Face
Length
  • 144"
Height
  • 1-1/2"
KAM151220E
KAM151220E
Component Type
  • Molding
Pieces Per Carton
  • 10
12ft Knurled Angle Molding 1-1/2" Face
Length
  • 144"
KAM21020
KAM21020
Component Type
  • Molding
Pieces Per Carton
  • 12
10ft Knurled Angle Molding 2" Face
Length
  • 120"
Height
  • 2"
KAM21020EQ
KAM21020EQ
Component Type
  • Molding
Pieces Per Carton
  • 10
10ft Knurled Angle Molding 2" Face
Length
  • 120"
Height
  • 2"
KAM21025
KAM21025
Component Type
  • Molding
Pieces Per Carton
  • 12
10ft Knurled Angle Molding 2" Face
Length
  • 120"
Height
  • 2"
LAM12
LAM12
Component Type
  • Molding
Pieces Per Carton
  • 20
12ft Locking Angle Molding
Length
  • 144"
Height
  • 1-1/4"
LAM12G90
LAM12G90
Component Type
  • Molding
Pieces Per Carton
  • 30
12ft Locking Angle Molding
Length
  • 144"
Height
  • 1-1/4"
SC151220EQ
SC151220EQ
Component Type
  • Molding
Pieces Per Carton
  • 10
12' x 1.5" SimpleCurve Knurled Angle Molding – (.028" metal thickness)
Length
  • 148"
Height
  • 1.5"
Width
  • 1.5"
SC151225
SC151225
Component Type
  • Molding
Pieces Per Carton
  • 10
12' x 1.5" SimpleCurve Knurled Angle Molding – (.018" metal thickness)
Length
  • 148"
Height
  • 1.5"
Width
  • 1.5"
SC21220EQ
SC21220EQ
Component Type
  • Molding
Pieces Per Carton
  • 10
12' x 2" SimpleCurve Knurled Angle Molding – (.028" metal thickness)
Length
  • 148"
Height
  • 2"
Width
  • 2"
SC21225
SC21225
Component Type
  • Molding
Pieces Per Carton
  • 10
12' x 2" SimpleCurve™ Knurled Angle Molding – (.018" metal thickness)
Length
  • 148"
Height
  • 2"
Width
  • 2"
AXIFL4CUR
AXIFL4CUR
Component Type
  • Perimeter Trim
Pieces Per Carton
  • 1
Axiom Field Light Cove Curved
Height
  • 4"
Width
  • 5"
AXILL2DCUR
AXILL2DCUR
Component Type
  • Perimeter Trim
Pieces Per Carton
  • 1
Light Ledge Classic Drywall Curved
Height
  • 2"
Width
  • 5"
AXILLKDCUR
AXILLKDCUR
Component Type
  • Perimeter Trim
Pieces Per Carton
  • 1
Light Ledge Knife Edge Drywall Curved
Height
  • 2"
Width
  • 7"
AXAKEACBSTR
AXAKEACBSTR
Component Type
  • Trim
Pieces Per Carton
  • 1
Axiom Angled Knife Edge Trim for AcoustiBuilt
Length
  • 120"
Height
  • 3"
Width
  • 3"
7909
Component Type
  • Transition
Pieces Per Carton
  • 12
15/16" Tegular Transition Molding
Length
  • 120"
Height
  • 1-15/16"
Width
  • 2-3/8"
7912
Component Type
  • Transition
Pieces Per Carton
  • 12
15/16" Shadow Reveal Transition Molding
Length
  • 120"
Height
  • 1-1/4"
Width
  • 2-3/4"
AX15DSCCUR
AX15DSCCUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom 1-1/2" Dbl Sided Conn, Curved
Length
  • 120"
Height
  • 1-15/16"
Width
  • 1-1/2"
AXTR10CUR
AXTR10CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom Transitions - 10" Curved, Teg
Length
  • 120"
Height
  • 10"
Width
  • 3/4"
AXTR4CUR
AXTR4CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
4in Axiom Transitions Curved
Length
  • 120"
Height
  • 4"
AXTR6CUR
AXTR6CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
6in Axiom Transitions Curved
Length
  • 120"
Height
  • 6"
AXTR7901CUR
AXTR7901CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom 9/16" Shadow Reveal Mold,Cur
Length
  • 120"
Height
  • 2-9/16"
Width
  • 2-5/16"
AXTR7902CUR
AXTR7902CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom 15/16" Shadow Reveal Mold,Cur
Length
  • 120"
Height
  • 2-9/16"
Width
  • 2-11/16"
AXTR7904CUR
AXTR7904CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom 15/16" Flush Acoust to Drywall Trans
Length
  • 120"
Height
  • 2-9/16"
Width
  • 2-5/16"
AXTR7905CUR
AXTR7905CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom 9/16" Flush Acoust to Drywall Trans
Length
  • 120"
Height
  • 2-9/16"
Width
  • 1-15/16"
AXTR7906CUR
AXTR7906CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom Vertical Trans Mold, Curved
Length
  • 120"
Height
  • 1-15/16"
Width
  • 1-11/16"
AXTR7907CUR
AXTR7907CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom 9/16" Vert Trans Mold, Curved
Length
  • 120"
Height
  • 2-9/16"
Width
  • 1-13/16"
AXTR7908CUR
AXTR7908CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom 15/16" Vert Trans Mold, Curved
Length
  • 120"
Height
  • 2-9/16"
Width
  • 1-13/16"
AXTR7909CUR
AXTR7909CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom Transition 1" Curved for 15/16"
Length
  • 120"
Height
  • 2-3/4"
Width
  • 1-1/2"
AXTR7910CUR
AXTR7910CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom Transition 1" Curved for 9/16"
AXTR7911CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom Transition - Curved 9/16
Length
  • 120"
Height
  • 2.5"
Width
  • 2.5"
AXTR7912CUR
Component Type
  • Transition
Pieces Per Carton
  • 1
Axiom Transition - Curved 15/16
Length
  • 120"
Height
  • 2.5"
Width
  • 2.5"
AXAKEACBIC
Component Type
  • Inside Corner
Pieces Per Carton
  • 1
Axiom Angled Knife Edge Trim for AcoustiBuilt Inside Corner
Length
  • 12"
Height
  • 3"
Width
  • 3"
AXAKEACBOC
Component Type
  • Outside Corner
Pieces Per Carton
  • 1
Axiom Angled Knife Edge Trim for AcoustiBuilt Outside Corner
Length
  • 12"
Height
  • 3"
Width
  • 3"
7901
7901
Component Type
  • Accessory
Pieces Per Carton
  • 12
9/16" Shadow Reveal Transition Molding
Length
  • 120"
Height
  • 1-1/4"
Width
  • 2-5/16"
7902
7902
Component Type
  • Accessory
Pieces Per Carton
  • 12
15/16" Shadow Reveal Transition Molding
Length
  • 120"
Height
  • 1-1/4"
Width
  • 2-11/16"
7903
7903
Component Type
  • Accessory
Pieces Per Carton
  • 12
1" Flush "T" Act. to Drywall Transition Molding
Length
  • 120"
Height
  • 1-1/2"
Width
  • 15/16"
7904
7904
Component Type
  • Accessory
Pieces Per Carton
  • 12
15/16" Flush Act. to Drywall Transition Molding
Length
  • 120"
Width
  • 2-11/16"
7904PF
7904PF
Component Type
  • Accessory
Pieces Per Carton
  • 12
15/16" Flush Transition Molding with Prot. Film
Length
  • 120"
Height
  • 1-1/4"
Width
  • 2-11/16"
7905
7905
Component Type
  • Accessory
Pieces Per Carton
  • 12
9/16" Flush Act. to Drywall Transition Molding
Length
  • 120"
Width
  • 2-5/16"
7905PF
7905PF
Component Type
  • Accessory
Pieces Per Carton
  • 12
9/16" Flush Act. to Drywall Transition Molding
Length
  • 120"
Height
  • 1-1/4"
Width
  • 2-5/16"
7906
7906
Component Type
  • Accessory
Pieces Per Carton
  • 12
"F" Vertical Act. To Drywall Transition Molding
Length
  • 120"
Width
  • 1-1/4"
7907
7907
Component Type
  • Accessory
Pieces Per Carton
  • 12
9/16" Tegular Act. to Drywall Transition Molding
Length
  • 120"
Width
  • 1-1/4"
7908
7908
Component Type
  • Accessory
Pieces Per Carton
  • 12
15/16" Tegular Act. to Drywall Transition Molding
Length
  • 120"
Height
  • 1-1/4"
Width
  • 15/16"
7910
Component Type
  • Accessory
Pieces Per Carton
  • 12
9/16" Tegular Transition Molding
Length
  • 120"
Height
  • 1-9/16"
Width
  • 2"
7911
Component Type
  • Accessory
Pieces Per Carton
  • 12
9/16" Shadow Reveal Transition Molding
Length
  • 120"
Height
  • 1-1/4"
Width
  • 2-3/8"
AXBTCUR
AXBTCUR
Component Type
  • Accessory
Pieces Per Carton
  • 1
Drywall Bottom Trim Curved
Length
  • 120"
Height
  • 55/64"
Width
  • 1-9/64"
2605WH
2605WH
Fine Texture Finish for ACOUSTIBuilt panels
52CHZUVC
52CHZUVC
Pieces Per Carton
  • 1
VIDASHIELD UV24 Air Purification System for Calla Health Zone
Length
  • 48"
Width
  • 24"
52DACBTK
Pieces Per Carton
  • 1
VIDASHIELD UV24 Drywall/AcoustiBuilt Trim Kit
Length
  • 50"
Width
  • 26"
52LUVC
52LUVC
Pieces Per Carton
  • 1
VIDASHIELD UV24 Air Purification System LED Lighting
Length
  • 48"
Width
  • 24"
7852B
Pieces Per Carton
  • 20
10' F Molding for 1/2 drywall
7856B
Pieces Per Carton
  • 20
10' F Molding for 1/2" drywall
ARM625500STR
ARM625500STR
Component Type
  • Reveal Molding for ACOUSTIBuilt Panel
Pieces Per Carton
  • 1
1/2" Reveal Molding for ACOUSTIBuilt panel to 5/8" Drywall Transition
Length
  • 120"
AX10CUR
AX10CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
10in Axiom Classic Curved
Length
  • 120"
Height
  • 10"
Width
  • 3/4"
AX12CUR
AX12CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
12in Axiom Classic Curved
Length
  • 120"
Height
  • 12"
Width
  • 3/4"
AX1PC2CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
2-1/2in Axiom Classic One Piece Drwyall Trim-curved
Length
  • 120"
Height
  • 2-1/2"
Width
  • 3/4"
AX1PC2STR
Component Type
  • Trim-Straight
Pieces Per Carton
  • 1
2-1/2in Axiom Classic One Piece Drwyall Trim-Straight
Length
  • 120"
Height
  • 2-1/2"
Width
  • 3/4"
AX1PC4CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
4in Axiom Classic One Piece Drwyall Trim-curved
Length
  • 120"
Height
  • 4"
Width
  • 3/4"
AX1PC4STR
Component Type
  • Trim-Straight
Pieces Per Carton
  • 1
4in Axiom Classic One Piece Drwyall Trim-Straight
Length
  • 120"
Height
  • 4"
Width
  • 3/4"
AX1PC6CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
6in Axiom Classic One Piece Drwyall Trim-curved
Length
  • 120"
Height
  • 6"
Width
  • 3/4"
AX1PC6STR
Component Type
  • Trim-Straight
Pieces Per Carton
  • 1
6in Axiom Classic One Piece Drwyall Trim-Straight
Length
  • 120"
Height
  • 6"
Width
  • 3/4"
AX2CUR
AX2CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
2in Axiom Classic Curved
Length
  • 120"
Height
  • 2"
Width
  • 3/4"
AX2VECUR
AX2VECUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
2in Axiom Vector Curved
Length
  • 120"
Height
  • 2"
Width
  • 3/4"
AX4CUR
AX4CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
4in Axiom Classic Curved
Length
  • 120"
Height
  • 4"
Width
  • 3/4"
AX4VECUR
AX4VECUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
4in Axiom Vector Curved
Length
  • 120"
Height
  • 4"
Width
  • 3/4"
AX6CUR
AX6CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
6in Axiom Classic Curved
Length
  • 120"
Height
  • 6"
Width
  • 3/4"
AX6VECUR
AX6VECUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
6in Axiom Vector Curved
Length
  • 120"
Height
  • 6"
Width
  • 3/4"
AX8CUR
AX8CUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
8in Axiom Classic Curved
Length
  • 120"
Height
  • 8"
Width
  • 3/4"
AX8VECUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
8" Axiom-Curved
Length
  • 120"
Height
  • 8"
Width
  • 7/8"
AXBTACUR
AXBTACUR
Component Type
  • Trim-Curved
Pieces Per Carton
  • 1
Axiom Bottom Trim for Acoustibuilt- Curved
AXBTASTR
AXBTASTR
Component Type
  • Trim-Straight
Pieces Per Carton
  • 1
Axiom Bottom Trim for Acoustibuilt- Straight
HD8906
HD8906
Component Type
  • Main Beam
Pieces Per Carton
  • 12
12ft HD Drywall Main Beam
Length
  • 144"
Height
  • 1-11/16"
SSLU2424
SSLU2424
Component Type
  • Main Beam
Pieces Per Carton
  • 12
SimpleSoffit L Soffit Up Turn 24x24
Length
  • 48"
Height
  • 1-1/4"
XL8945P
XL8945P
Component Type
  • Cross Tee
Pieces Per Carton
  • 36
4ft Drywall Cross Tee
Length
  • 48"
Height
  • 1 1/2"

CAD & REVIT

CAD Files
REVIT Files

Resources

Technical

Brochures

Sustainability

Case Studies
