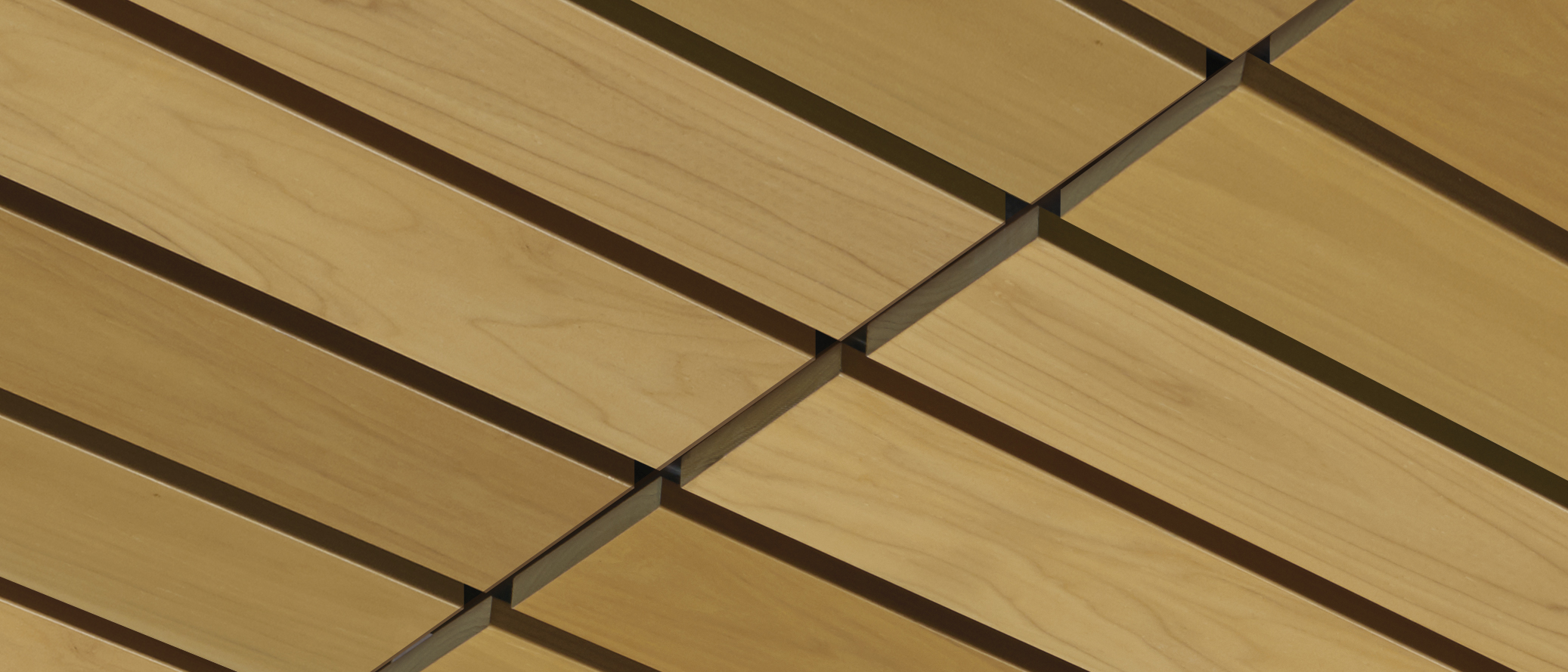

WOODWORKS Linear Solid Wood Panels

NRC (Noise Reduction Coefficient) is a standard measurement for a material’s acoustical absorption ranging from 0.00 (no absorption) to 1.00 (total absorption).

CAC (Ceiling Attenuation Class) is a standard measurement of a ceiling system’s ability to block sound between two closed spaces. CAC values of 35 or greater are recommended to achieve speech privacy.

NIC (Noise Isolation Class) is a standard measurement of total sound attenuation between two closed spaces. It considers the ceiling, wall, and other interior finishes.

AC (Articulation Class) is a standard measurement of a ceiling system’s ability to attenuate sound within a large open plan space. AC values of 170 or more are recommended to reduce speech distraction.

Sabin is the unit of measure for total sound absorption of an acoustical object (like blades, baffles, clouds, and canopies).

Now, standard products available in 4 weeks or less provide a variety of options and offer short lead times to fit most budgets. Standard sizes and colors mean no shop drawings or submittal sample approvals. Package with the diverse portfolio of Armstrong solutions.

Want to learn more? Check out the FAST Program for Specialty Ceilings.

Performance

  • Two plank widths – nominal 3" and nominal 5"
  • Fast, easy installation – screw into suspension system or install with backer clip
  • Integrated downlighting solutions from USAI® Lighting sit perfectly flush with the panel face for a sleek visual. Compatible with BeveLED 2.2 for WOODWORKS and BeveLED Mini® for WOODWORKS lighting fixtures
  • Integrate linear lights seamlessly with the Integrated Light Connection Clip and lights from Backlight® srl and XAL®
  • Lighting solutions are certified for fit and finish and engineered to be supported by standard Armstrong suspension systems for use in all areas, including seismic DEF zones.
  • Create continuous looks and clouds with solid wood trim
  • Complete standard system from one manufacturer
  • BIOACOUSTIC infill available for increased acoustical performance
  • Acoustical fleece available as an option for interior applications
  • Use items 8118 or 8117 to transition from indoors to outdoors for dramatic design
Fire
  Fire Performance Class C
Sag/Humidity Resistance

Ceiling panels maintain humidity and sag resistance.
Standard
Disinfectability
Fog

May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Spray

May be sprayed following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Wipe

May be wiped following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines.
Warranty One year limited warranty.
Special Applications
  • Library

Sustainability Profile

SUSTAINABLE PRODUCT SEARCH TOOL usGreenGenie_alt
Get Started

Project Gallery

Project Gallery

Tectum DesignArt - Shapes Direct Attach Wall Panels Rendering
Project Gallery

Lawrence University – Richard and Margot Warch Campus Center

Videos

Installation

How to and Guides

Accessories

5671
5671
Ledger
Length
  • 96 in
Width
  • 1 in
5687
5687
Backer Clip
7146
Pieces Per Carton
  • 1
Solid Wood Trim
Length
  • 120 in
Width
  • 4 in
7239
7239
Adjustable Trim Clip
Length
  • 2-1/2 in
Width
  • 1-1/2 in
7891
7891
Pieces Per Carton
  • 140
12 Gauge Hanger Wire
Used For
to hang suspended ceilings from structure.
8171WLSPC01
8171WLSPC01
Integrated Light Connection Clip
92715A620
Self-tapping Screws

Solution Partners

Backlight
Backlight
XAL
XAL
USAI
USAI

CAD & REVIT

CAD Files
REVIT Files
