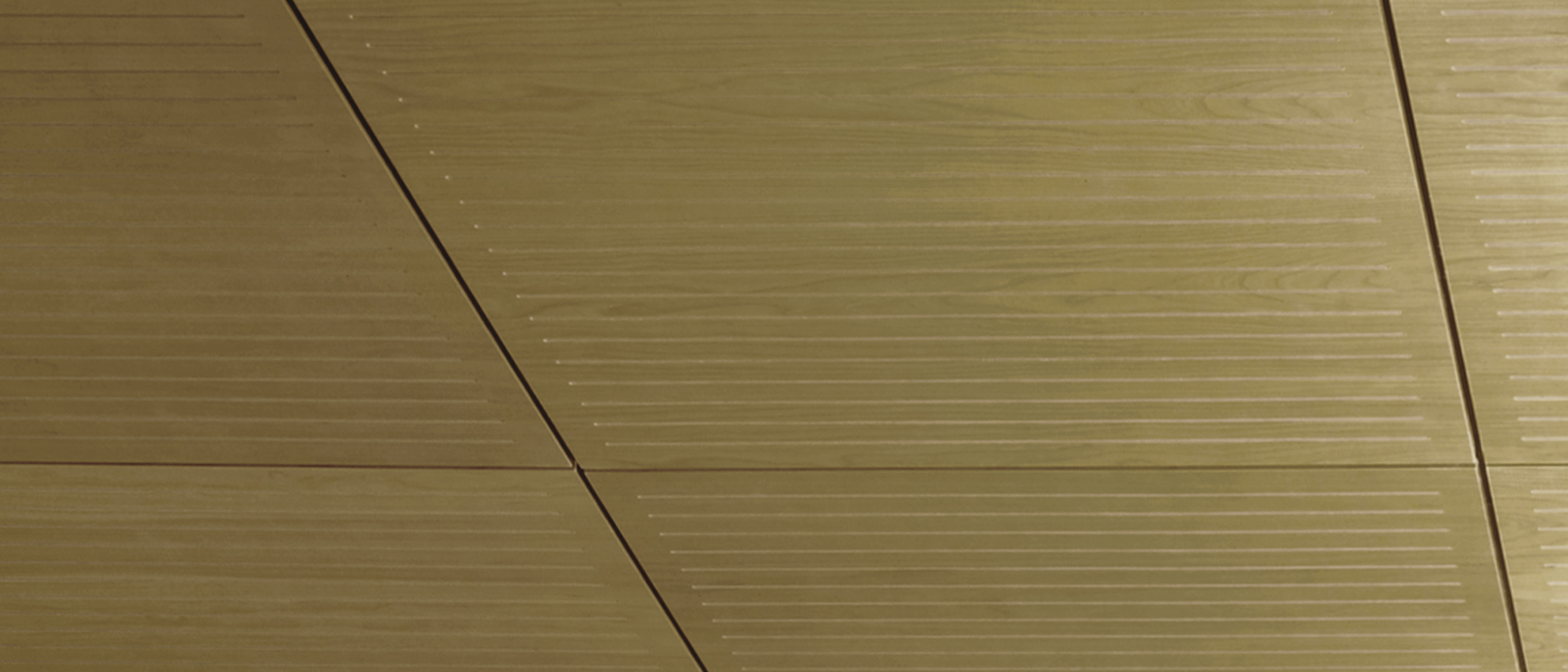

WOODWORKS Channeled Vector

WOODWORKS Channeled Vector

These ceiling panels are available in FSC® certified real wood veneers or economical wood-look visuals.

NRC (Noise Reduction Coefficient) is a standard measurement for a material’s acoustical absorption ranging from 0.00 (no absorption) to 1.00 (total absorption).

CAC (Ceiling Attenuation Class) is a standard measurement of a ceiling system’s ability to block sound between two closed spaces. CAC values of 35 or greater are recommended to achieve speech privacy.

NIC (Noise Isolation Class) is a standard measurement of total sound attenuation between two closed spaces. It considers the ceiling, wall, and other interior finishes.

AC (Articulation Class) is a standard measurement of a ceiling system’s ability to attenuate sound within a large open plan space. AC values of 170 or more are recommended to reduce speech distraction.

Sabin is the unit of measure for total sound absorption of an acoustical object (like blades, baffles, clouds, and canopies).

Now, standard products available in 4 weeks or less provide a variety of options and offer short lead times to fit most budgets. Standard sizes and colors mean no shop drawings or submittal sample approvals. Package with the diverse portfolio of Armstrong solutions.

Want to learn more? Check out the FAST Program for Specialty Ceilings.

Performance

  • Create a continuous ceiling, cloud, or ceiling-to-wall transition
  • FSC® certified chain of custody (CoC) certified WoodWorks products represent responsible production and consumption practices from the forest to the consumer
  • Economical Images Finishes available in larger Tegular and Vector panel sizes – 24" x 48", 12" x 48", and 30" x 30" for even more design flexibility
  • Acoustical backing improves sound quality
  • Shorter lead times and lower costs than custom millwork
  • Class A fire performance
  • BioAcoustic infill panels can enhance acoustics and contribute to LEED® credits
Fire
  Fire Performance Class A
Recycled Content

Recycled content range.
Up to 100%
Sag/Humidity Resistance

Ceiling panels maintain humidity and sag resistance.
Standard
Special Applications
  • Library

Sustainability Profile

Recycled Content
Up To 100%
SUSTAINABLE PRODUCT SEARCH TOOL usGreenGenie_alt
Get Started
FSC® Certified fsc_alt
Learn More

Project Gallery

Project Gallery

Geisinger Medical Center
Project Gallery

Anne Arundel Community College
Project Gallery

Acoustics Inc.

Videos

Installation

How to and Guides

  • Vector Hold Down Clip 442A

    The 442 clip is a required clip for all vector installations. This clip keeps pressure on the curved side of the downward accessible tile.

Accessories

7425
7425
Component Type
  • Accessory
Pieces Per Carton
  • 100
Stabilizer Bar
Used For
maintaining uniform spacing of suspension system components (main beams and cross tees).
Length
  • 24 in
7445
7445
Component Type
  • Accessory
Pieces Per Carton
  • 100
Stabilizer Bar
Used For
maintaining uniform spacing of suspension system components (main beams and cross tees).
Length
  • 48 in
FXSPTHDC
Component Type
  • Clip
Pieces Per Carton
  • 10
Effects Hold Down Clip
442
442
Pieces Per Carton
  • 50
Vector/Concealed Hold Down Clip
Used For
Vector Hold Down Clip (required for installation)
5415W1
Pieces Per Carton
  • 6
4" WoodWorks Trim (with FSC-cert. wood substrate)
Length
  • 96 in
Width
  • 4 in
5419W1
Pieces Per Carton
  • 4
6" WoodWorks Trim (with FSC-cert. wood substrate)
Length
  • 96 in
Width
  • 6 in
5659W1
Pieces Per Carton
  • 6
4" WoodWorks Trim (with aluminum substrate)
Length
  • 120 in
Width
  • 4 in
5660W1
Pieces Per Carton
  • 6
6" WoodWorks Trim (with aluminum substrate)
Length
  • 120 in
Width
  • 6 in
6408
Edge Banding

CAD & REVIT

CAD Files
REVIT Files

Resources

Technical

WOODWORKS SDS
  • pdf
  • 160K
