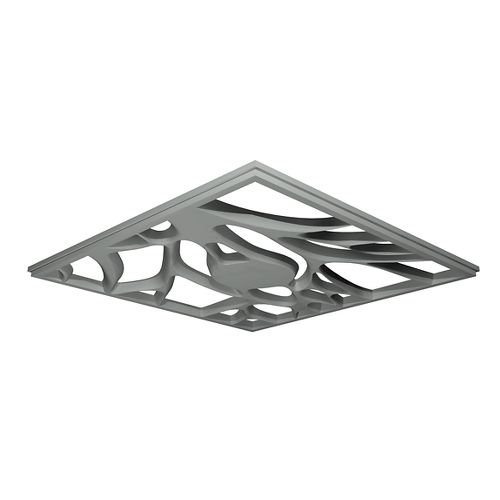

CASTWORKS METAPHORS Ceiling Panels
Select Color Swatch to View Lead Time
Color Not Part of FAST Program
- Edge: Square Tegular 9/16"
- Dimensions: 24" x 24"
- Pattern: Botanical with Flat Area, Reversed
- Fire Performance: Class A
- Light Reflectance: 79%
- Face Profile: 9/16"
REVIT
Product Details
| Fire | |
|---|---|
|
Fire Performance
|
Class A |
|
Light Reflectance
A high light reflective ceiling – LR 0.83 or greater, per ASTM E1477-98 as referred to in ASTM E1264-98 – makes lighting systems, especially indirect lighting, more effective while further reducing energy costs and consumption. LR values apply to White panels only. |
79% |
|
Disinfectability
|
|
|
Fog
May be fogged following CDC recommendations using EPA-approved disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines |
|
|
Spray
May be sprayed following CDC recommendations using EPA disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines |
|
Material
|
Glass Fiber Reinforced Gypsum (GRG) |
|---|---|
|
Texture
|
Smooth |
|
Surface Finish
|
Factory applied latex paint |
|
Weight
|
3.3 lbs/SF |
|
Sq Ft (Sq Ft / Carton)
|
20 |
|
Pieces / Carton
|
5 |
|
Installation Method
|
Grid (Suspended) |
|
Accessibility
Downward access for panels minimizes panel damage. |
Yes |
Want to Improve the Acoustical Value of your design?
You've Added
Available Infill Panels
2820
Calla 15/16" Sq Lay-in
0.85
1318
15/16" Square Lay-in 24 x 24 x 3/4"
0.80
5823
BioAcoustic Infill Panel (Black - Matte)
0.75
None
- Acoustical values achieved with infill panel. See data page for details.
Sustainability Profile
LEED • WELL • Living Building Challenge
|
Recyclable/Extended Producer Responsibility
|
Recycled Content
|
|
Energy Management
|
Sourcing of Raw Materials
|
|
Construction Waste
|
Material Ingredient Reporting
|
|
Regional Materials
Location Dependent
|
Low emitting/materials
|
|
Design for Flexibility
|
Lighting Quality
|
|
EPD
|
Acoustics (With Infill Panels)
|
|
Biobased Materials
|
