DYNAMAX

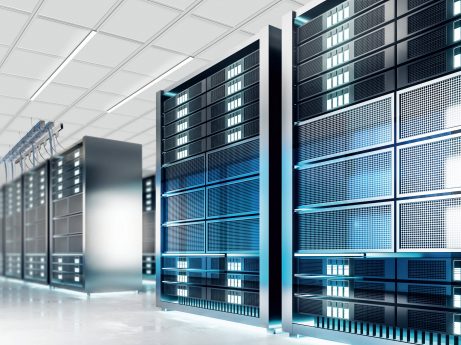

This fully accessible and structural flexible system allows you to support heavy point loads to provide a complete ceiling solution for every type of data center.

Key Features & Performance

  • Ideal combination of a finished ceiling system with a structural solution

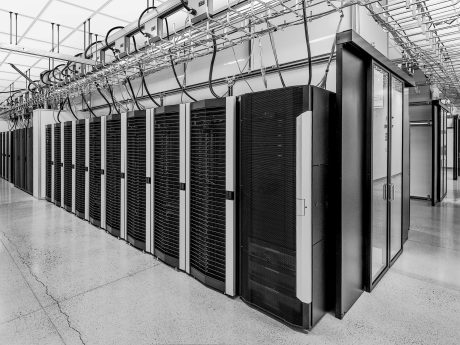

  • Provides a suspension platform or attachment for data center cable trays, equipment, partitions and hot and cold aisle containment barriers from building structure to below the ceiling plane
  • Finished ceiling system offers a containment barrier to protect servers from debris
  • Easy integration into a conventional grid system using AXTBC clip and DYNAMAX boss channels
  • Integrates seamlessly with ARMSTRONG ceiling panels for a complete ceiling system solution
  • Lighting, diffuser, and air containment options are available from our solutions partners
  • Supports up to a 900 lb. point load rating using 3/8" threaded rod at 4' x 4' connection points
  • Factory cut notches on main beams for a faster and easier installation
  • Suspension system has continuous threaded boss channel, allowing 3/8" threaded rod to be installed to the suspension system at any location
  • Provides increased air pressure and temperature management, reduced leakage, and enables the best hot and cold air containment at the ceiling plane when compared to drilled hole or slotted strut ceilings
  • Available with ULTIMA AIRASSURE panels with factory-gasketed edges
  • Available in 2 x 2', 2 x 4' and 4 x 4' suspension system layouts
  • CNC override feature creates a tight fit minimizing air leakage between plenum and occupied space
  • Fully accessible system allows for future expansion and upgrades
  • Non progressive installation gives the ability to remove or replace a section of the system without the need to dismantle those components around it
  • Cross tees not bearing any load are removable for plenum access without compromising the structural integrity of the system
  • 10 year limited warranty
  • X-Brackets installed on DYNAMAX grid provide attachment points for 4' x 4' suspension from building structure
Face
Face Dimensions
2 - 3/8"
Material
Materials
Aluminum
Duty
Duty Ratings
Heavy Duty
Special Applications
Data Center / Computer Room
Structural Grid
