ULTIMA HEALTH ZONE CREATE!

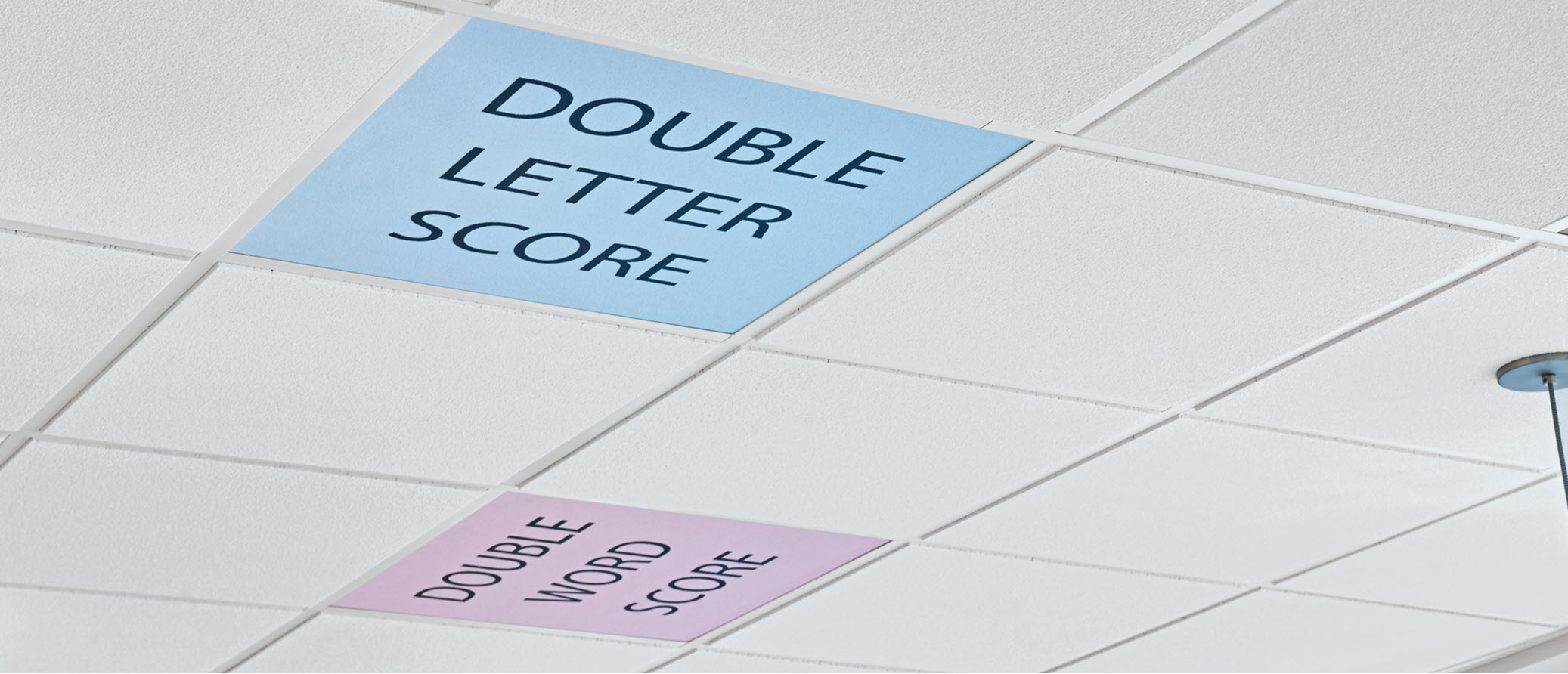

CREATE! custom images give your ceiling a unique visual using your own artwork. Great acoustics have never been so colorful!

Key Features & Performance

  • Get total noise control and design flexibility with TOTAL ACOUSTICS ceiling panels: NRC + CAC = TOTAL ACOUSTICS performance
  • Artistic designs have broad appeal and complement unique interior design
  • Excellent sound absorption – NRC 0.70 – 0.90
  • High performance benefits:
    • Washable
    • Soil-resistant
    • Water-repellent
  • Product is directional
  • Custom samples available
  • Can contribute to LEED credits
Material
Materials
Mineral Fiber
Acoustics
Sound Absorption (NRC)

A measure for rating the overall sound absorption of a material when used in an enclosed architectural space where sound is reflected at many angles of incidence. A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance.

0.70
Sound Blocking (CAC)

A measure for rating the performance of a ceiling system as a barrier to airborne sound transmission through a common plenum between adjacent closed spaces. A ceiling system with a CAC < 25 is considered low performance, whereas one with CAC of 35 or higher is high performance.

38
Fire
Fire Performance
Class A (UL)
Anti-Microbial
Mold/Mildew Resistance

Ceiling panels with BIOBLOCK performance resist the growth of mold and mildew on the panel surface.
Ceiling panels with BIOBLOCK Plus performance resist the growth of odor and stain-producing bacteria as well as mold and mildew on the ceiling panel surface.

BIOBLOCK Plus
Humidity
Sag/Humidity Resistance

Ceiling panels maintain humidity and sag resistance.

HUMIGUARD Plus
Durability
Water Repellent

Product resists water for 15 minutes allowing proper cleaning for infection control.

Soil Resistance

Excellent resistance to dirt and/or grease for lasting value and performance.

Impact Resistance

Surface impact based on the Striking Ball Impact Test, modified ASTM D1037 procedure.

Washability

Offers superior wash resistance without compromising panel finish integrity, using a washability tester as per ATSM D4828.

Sustainability
USDA certified biobased content

This product is part of the USDA BioPreferred Program and it's biobased content has been independently laboratory tested and third-party certified.

95%
The ideal combination of sound absorption & sound blocking.
Complimentary ceiling design & pre-construction service.
Sustainability Profile
76%
Recycled Content
LEED  •  WELL  •  Living Building Challenge
Recycled/extended producer resp.
Recycled Content
Energy Management
Sourcing of Raw Materials
Construction Waste
Material Ingredient Reporting
Regional Materials
Location Dependent
Low emitting/materials
Design for Flexibility
Lighting Quality
EPD
Acoustics
Biobased Materials
