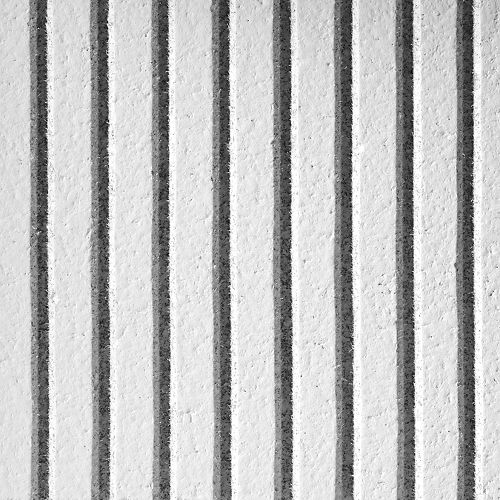

GRAPHIS Rustex: 2602

  • GRAPHIS Rustex | 2602
  • GRAPHIS Rustex | 2602
GRAPHIS Rustex | 2602
GRAPHIS Rustex | 2602
Edge Dimensions Pattern Acoustics Lead Time Lead Time Lead Time Lead Time Lead Time
Beveled Tegular 9/16 or 15/16
Beveled Tegular 9/16 or 15/16"
24" x 24"
24" x 24" x 3/4"
Linear Beveled
Linear Beveled
0.55 NRC
30 CAC
FAST1
FAST1
1 Week or Less Order-to-Ship
FAST3
FAST3
3 Weeks or Less Order-to-Ship
FAST4
FAST4
4 Weeks or Less Order-to-Ship
fast
Select Color Swatch to View Lead Time
fast
Color Not Part of FAST Program
NOTE: Shape drawings are not to scale.
See Technical Details



Order Sample Create Specification

Buying Options:

find-a-distributor Buy Online with Kanopi
Kanopi is a direct-to-customer branch of Armstrong.

Performance

  • Finely sculptured geometric patterns
  • Single- and multi-design options
    • High light reflectance
Acoustics

Acoustical options available.

Sound Absorption (NRC)

A measure for rating the overall sound absorption of a material when used in an enclosed architectural space where sound is reflected at many angles of incidence. A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance.
0.55
Sound Blocking (CAC)

A measure for rating the performance of a ceiling system as a barrier to airborne sound transmission through a common plenum between adjacent closed spaces. A ceiling system with a CAC < 25 is considered low performance, whereas one with CAC of 35 or higher is high performance.
30
Fire
  Fire Performance Class A (UL)
Light Reflectance

Light reflectance average of 0.83 or greater. White only.
75%
Sag/Humidity Resistance

Ceiling panels maintain humidity and sag resistance.
HumiGuard Plus
Insulation Value R Factor-BTU: 1.60 BTU
R Factor-Watts: 0.28 m2 K/W
BioBlock

Ceiling tiles with BioBlock performance resist the growth of mold and mildew on the ceiling tile surface.
Yes
Material Mineral Fiber
Texture Fine
Surface Finish Factory applied latex paint
Shape Rectangle
Weight 0.90 PF2
Sq Ft (Sq Ft / Carton) 48
Pieces / Carton 12
ASTM Classification Type: III, Form: 2, Pattern: JZ
Installation Method Grid (Suspended)

Sustainability Profile


Recycled Content
 72%
Recyclable Through Armstrong Recycling Program usRecycle_alt
Learn More
SUSTAINABLE PRODUCT SEARCH TOOL usGreenGenie_alt
Get Started

Project Gallery

Project Gallery

Botanical Research Institute of Texas

Videos

Installation

How to and Guides

  • Fast and Easy Acoustical Ceiling Installation

    Learn how to install a commercial ceiling from start to finish in this 20 minute ceiling apprentice course/video.

Compatible Grid & Trim

SUPRAFINE XL 9/16" Exposed Tee
SUPRAFINE XL 9/16" Exposed Tee

This versatile 9/16" suspension system combines durability and stability with a refined appearance.
SUPRAFINE ML 9/16" Exposed Tee
SUPRAFINE ML 9/16" Exposed Tee

This versatile 9/16" suspension system combines durability and stability with a refined appearance.
PRELUDE XL 15/16" Exposed Tee
PRELUDE XL 15/16" Exposed Tee

This hot-dipped galvanized steel 15/16" suspension system offers high recycled content for improved LEED credits.
PRELUDE ML 15/16" Exposed Tee
PRELUDE ML 15/16" Exposed Tee

A 15/16" suspension system with hook-end details.
