SUPRAFINE XL Fire Guard 9/16" Exposed Tee

SUPRAFINE XL Fire Guard 9/16" Exposed Tee

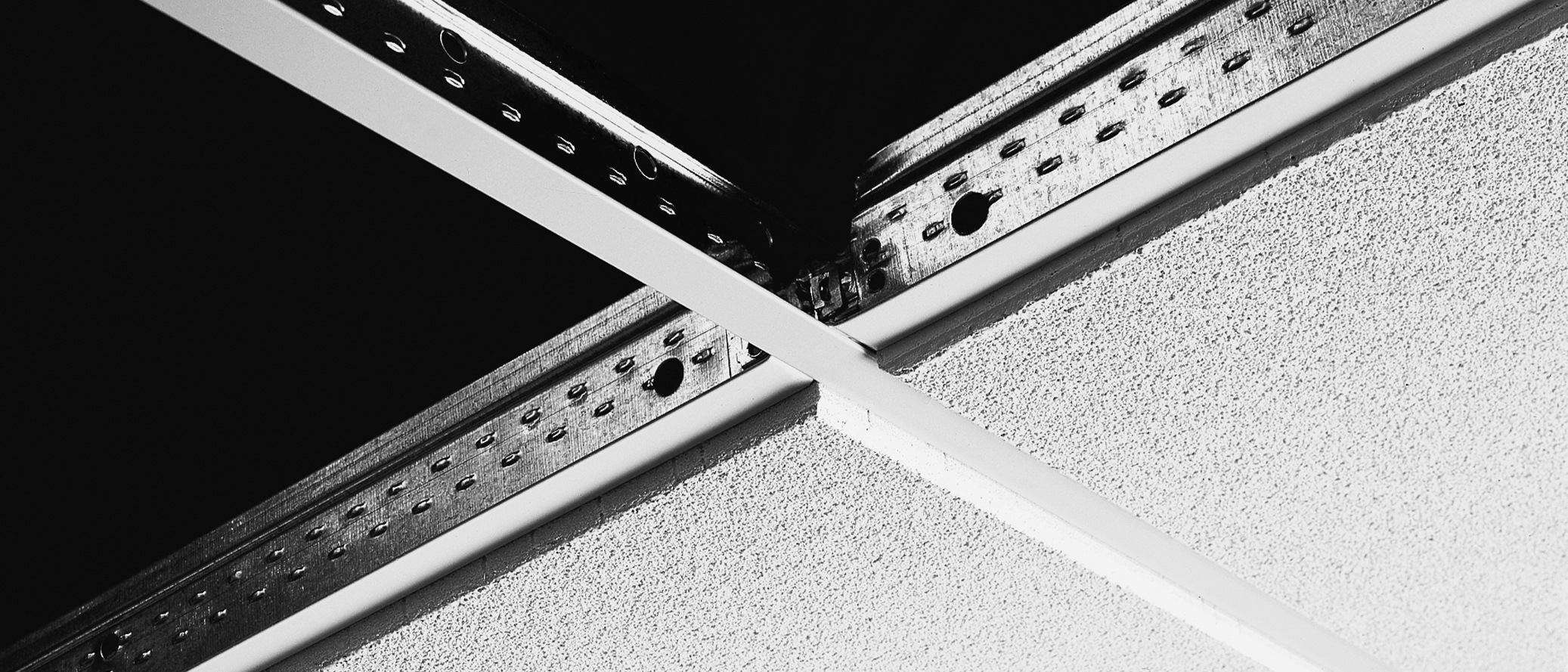

This versatile 9/16" suspension system combines durability and stability with a refined appearance.

Cleaning & Disinfecting

Colors & Options

White
Custom color selected. Indicate color when specifying.
SUPRAFINE XL Fire Guard 9/16" Exposed Tee in White
Colors

Performance

  • Seismic Rx Suspension System saves time and money; Armstrong offers an ICC-ES approach to installations (ESR-1308)
  • PeakForm profile increases strength and stability
  • SuperLock main beam clip is engineered for a strong, secure connection and fast, accurate alignment
  • Hot-dipped galvanized coating inhibits red rusting better than other systems
  • Cross tees available in ML and XL (staked-on end detail); secure connection; easy to remove, reuse/relocate
  • 1-11/16" web height keeps components vertical and stable at light fixture interface
Fire
  Fire Resistance * FireGuard
Duty Ratings Intermediate Duty
Seismic Categories ** C
* Not all systems for use in all UL designs
** Not all components can be used in all seismic categories
Face Dimensions 9/16 in
Profile Types Exposed Tee
Materials Hot-dipped Galvanized Steel
Disinfectability
Fog

May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Spray

May be sprayed following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines​.
Wipe

May be wiped following CDC recommendations using EPA disinfectant​ cleaners per Armstrong Cleaning & Disinfecting Guidelines.

Sustainability Profile


Recycled Content
 30%
SUSTAINABLE PRODUCT SEARCH TOOL usGreenGenie_alt
Get Started
High Performance Sustainable Ceiling Systems usSustain_alt
Learn More
Living Building Challenge Compliant usDeclare_alt
Learn More

Videos

Installation

How to and Guides

  • Single Tee Adapter Clip - STAC

    STAC Clip or Single Tee Adapter Clip allows you to create off-module or staggered grid installation for both non-seismic areas, seismic C, and seismic DEF. Learn more in this short video.

  • Fast and Easy Acoustical Ceiling Installation

    Learn how to install a commercial ceiling from start to finish in this 20 minute ceiling apprentice course/video.

Accessories

7804
7804
Component Type
  • Molding
Pieces Per Carton
  • 30
12ft Hemmed Angle Molding
Length
  • 144 in
Height
  • 7/8 in
780410
780410
Component Type
  • Molding
Pieces Per Carton
  • 30
10ft Hemmed Angle Molding
Length
  • 120 in
Height
  • 15/16 in
7804HRC
7804HRC
Component Type
  • Molding
Pieces Per Carton
  • 30
12ft Hemmed Angle Molding
Length
  • 144 in
Height
  • 7/8 in
