Modular Partitions

Modular partitions offer fixed and flexible containment solutions designed to fit non-uniform server aisles or seal large open areas.

Modular partitions offer fixed and flexible containment solutions designed to fit non-uniform server aisles or seal large open areas.

Connect With Us

Optimize Cooling & Scalability with Partitions

Modular partitions provide a solid, fixed, or flexible barrier for dividing a room into smaller, conditioned spaces, which improves cooling efficiency, fills gaps, and can establish secure work zones.
Flexible Containment

Customize containment to your specific application. Both modular framed containment partitions and flexible strip curtains can be sized to create a floor-to-ceiling barrier, divide large spaces, or fill gaps in containment.

Efficient Cooling

Improve cooling efficiency by creating smaller conditioned spaces. Both solutions provide solid vertical containment to separate hot and cold air, protecting your critical infrastructure.

Simple Installation

Streamline the installation process with solutions designed for convenience. Both systems are cut to size and feature multiple mounting options for simple installation with a hand drill.

Product Options


If you are interested in the products below, contact us for more information.

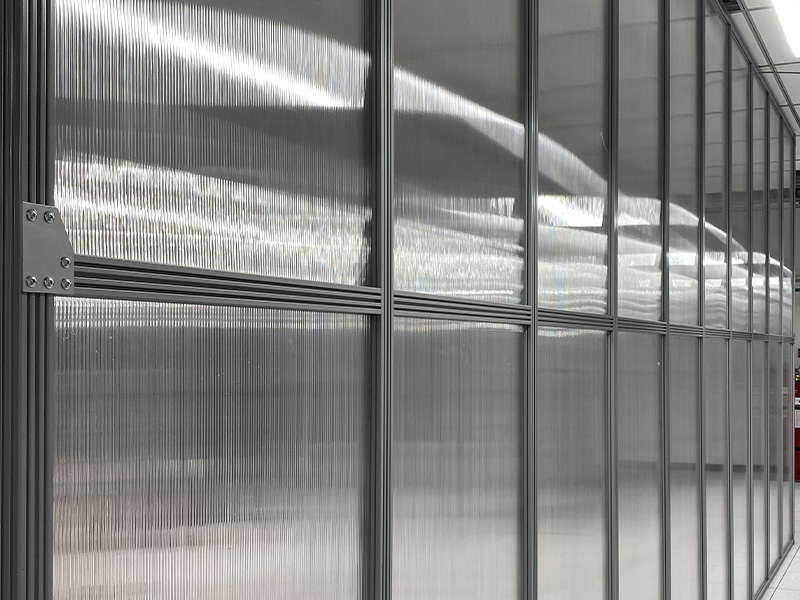

Cool Shield™ Modular Partitions

Modular framed containment partitions are custom sized to create a floor-to-ceiling barrier. The barrier divides large spaces to improve cooling efficiency or create work zones.

  • Key Features
    • Rigid modular partition system custom sized to each application
    • Create smaller conditioned space to improve cooling efficiency
    • Solid vertical containment to seal opposite single row cabinet
    • Extrusion and panels cut to size for simple installation with hand drill
  • Specifications
    • Heavy-duty 2″ x 2″ vertical and horizontal support beams
    • Frame accepts 4mm and 6mm panels
    • Clear, opaque, frosted or translucent panel options
    • Frames available in silver or black. Custom colors available

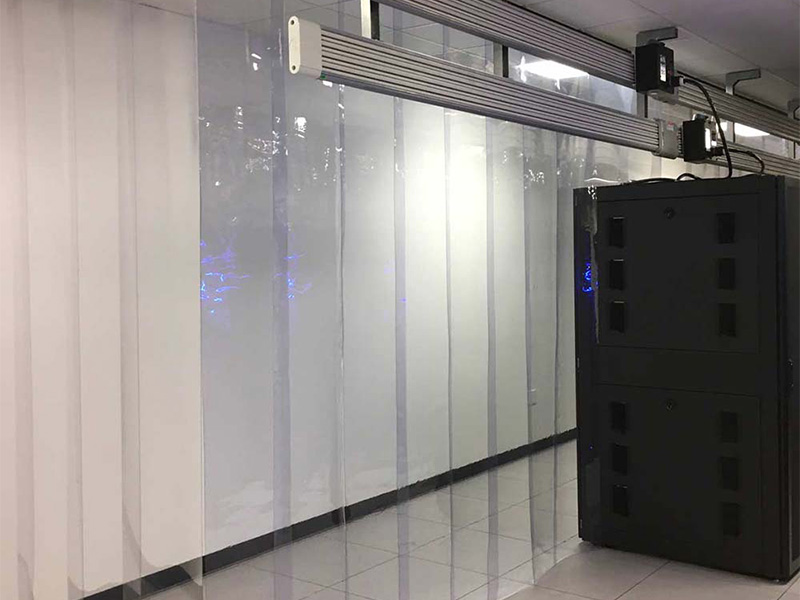

Cool Shield™ Flexible Strip Curtains

Most data centers do not have aisles with perfectly uniform rows of cabinets. For an existing data center that has evolved over time or even a new build out, it is rare that all potential positions are filled.

  • Key Features
    • Overlapping strips cut to size to fill large or small gaps in containment
    • Strips can be easily removed or cut when cabinets are deployed
    • Optional removable mounting bracket attaches to Cool Shield™ channel
    • Optional floor support to prevent separation due to air pressure
    • Optional thermal release solutions
  • Specifications
    • ASTM E84 Class A and UL94 V0 rated strip material meets NFPA 75 standards
    • Lightweight, clear material with low out-gassing
    • 12″, 14″, 26″ and 48″ strip standard widths
    • Multiple channel mounting methods including drop ceiling, strut and beams
    • Re-closable fasteners prevent strip separation

More Aisle Containment Solutions

Cool Shield™ Framed Panels
Cool Shield™ Structure
Cool Shield™ Containment Doors

Containment and Design Strategy Services

From single server rows to full-scale data centers, Armstrong provides modular, customizable solutions that adapt to your space and cooling strategy. Our design services will help you with the right solution for your data center environment.
