Reliable and Configurable Aisle Access
Smooth-opening sliding rails and low-profile designs support easy aisle entry.
Robust construction with a hydraulic self-closing mechanism for long-lasting use.
High performance with aesthetic appeal to elevate aisle entryways.
Product Options
If you are interested in the products below, contact us for more information.

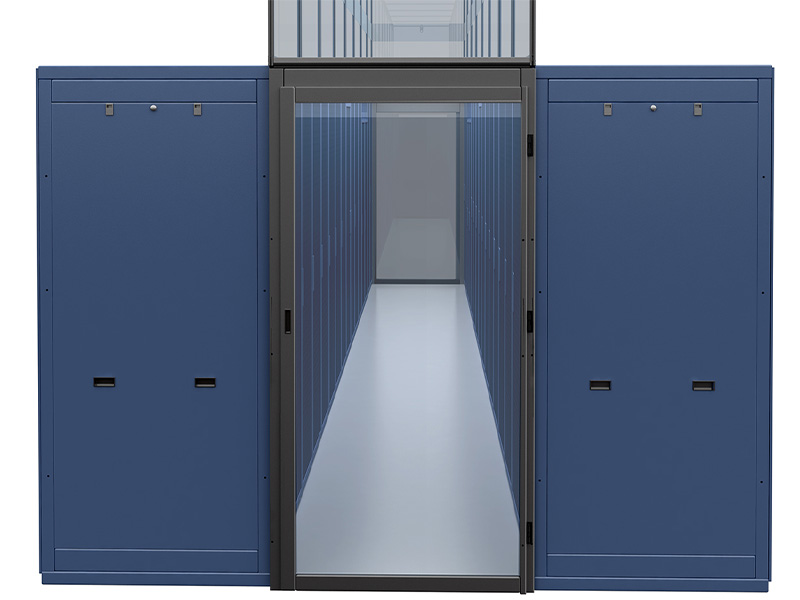

Single Hinged Containment Doors
The single-hinged door offer both high performance and aesthetic appeal, enhancing the design of aisle entryways. They are crafted to deliver exceptional functionality and visual appeal to your facility’s aisle configurations.
-
Key Features
- Door inserts meet NFPA 75 data center standards
- Door inserts are completely transparent to allow security cameras visibility into the aisles
- Frames and brackets are available in silver or black
- Integrated side lights allow doors to function on wide aisle entry way
-
Specifications
- Door closes automatically to prevent air leakage
- Closing speed is fully adjustable
- Magnetic disks prevent doors from opening due to air pressure in aisles
- Standard inserts are ASTM E84 class A rated

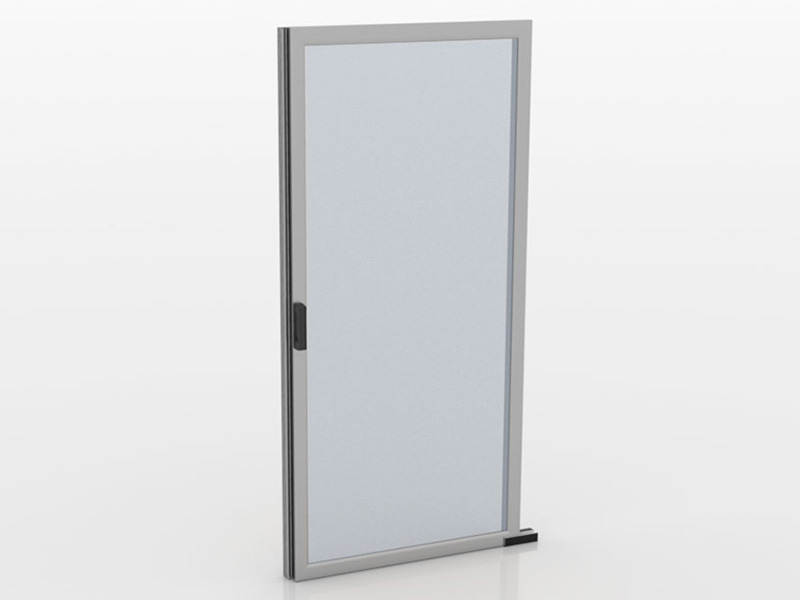

Single Sliding Door
The single sliding door boasts a robust, practical, and aesthetically pleasing design. Its smooth-opening slide rails and dependable hydraulic self-closing mechanism ensure effortless operation and long-lasting performance.
Standard Sizes
- 40” wide x 84” high
- 50” wide x 84” high
- 40” wide x 90” high
- 50” wide x 90” high
-
Key Features
- Covers hot or cold aisle entries up to 50” width
- Door handles and opening force meet ADA requirements
- Hydraulic self-closing mechanism
- Sidelight frames extend doors for use in wider aisles
-
Specifications
- Standard clear door inserts feature ASTM E84 class A-rating
- Optional clear door inserts with ASTM E84 class A or FM 4901 ratings available
- Door frames feature integrated threaded channels for multiple mounting options
- Integrated brush and rubber gaskets prevent air leakage

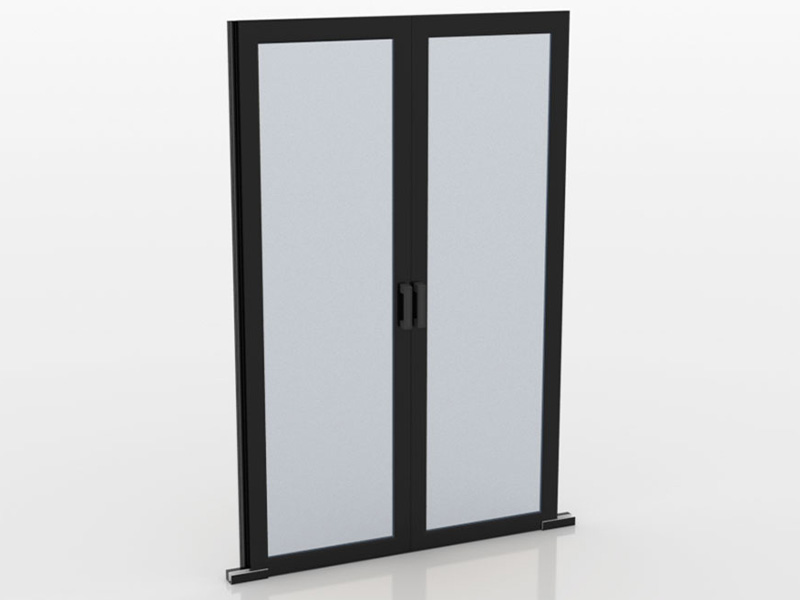

Double Sliding Doors
The double sliding doors are engineered for comprehensive efficiency. Its unique slide rail ensures a smooth opening while maintaining a low-profile footprint.
Standard Sizes
- 54” wide x 84” high
- 64” wide x 84” high
- 74” wide x 84” high
- 54” wide x 90” high
- 64” wide x 90” high
- 74” wide x 90” high
-
Key Features
- Covers hot or cold aisles up to 74” width
- Door handles and opening force meet ADA requirements
- Hydraulic self-closing mechanism
- Doors hold in the fully open position
-
Specifications
- Standard clear door inserts feature ASTM E84 class A rating
- Optional clear door inserts with ASTM E84 class A or FM 4901 ratings available
- Door frames feature integrated threaded channels for multiple mounting options
- Integrated brush and rubber gaskets prevent air leakage

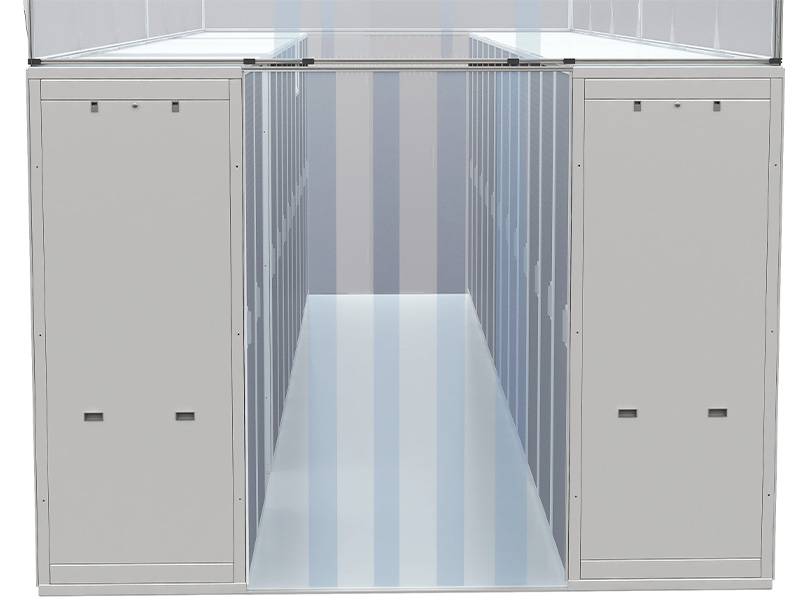

Strip Doors
The strip doors retain all the advantages of traditional vertical strips. The innovative two-tier design further enhances their effectiveness for improved performance.
-
Key Features
- Unique channel bar allows navigating around cable trays, pipes, etc.
- Lightweight, clear material with low out-gassing
- Mounting kits for ceiling grid, unistrut, cabinet tops and threaded rod
- Optional fusible links allow strips (not rack access rail) to fall before fire suppression releases
- 12”, 14”, 24” and 48” strip standard widths
- Re-closable fasteners prevent strip separation
-
Specifications
- Two-tier system for maximum effectiveness and versatility
- Upper tier affixed to channel to prevent separation
- Lower tier for aisle entry and above uneven height cabinets
- Clear flexible strip material meets NFPA 75 standards
- Optional thermal release solutions
More Aisle Containment Solutions
Containment and Design Strategy Services
From single server rows to full-scale data centers, Armstrong provides modular, customizable solutions that adapt to your space and cooling strategy. Our design services will help you with the right solution for your data center environment.
