Discover the Benefits of Cool Shield™ Structure
The adaptable structure frame is a highly versatile solution for a wide variety of aisle containment configurations. Double, unique vertical support channels accept hinged and sliding doors, as well as containment panels.
Support heavy cable trays and essential power routing components directly on the frame. This robust structural integrity helps your facility maintain continuous operation and uptime goal.
Idea for facilities that lack sufficient overhead support options, this floor mounted structural frame system supports current and future mechanical load.
Product Options
If you are interested in the products below, contact us for more information.

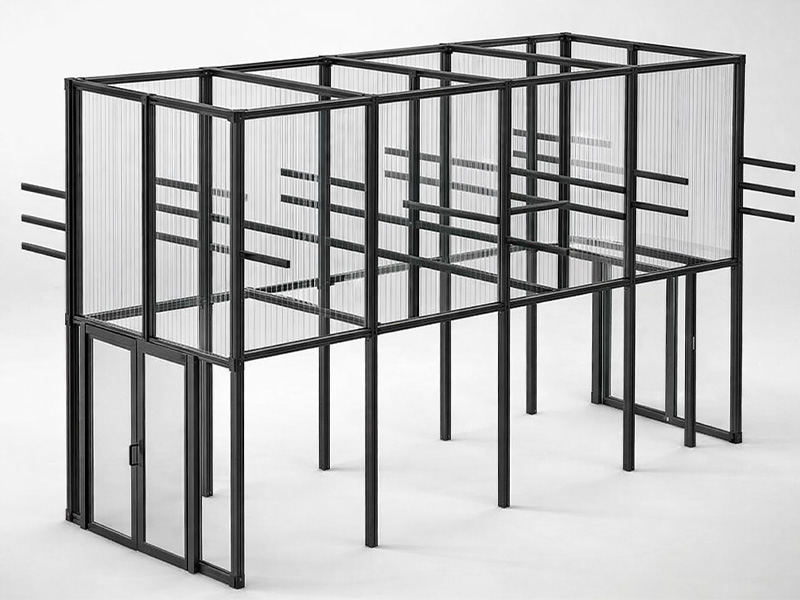

Cool Shield™ 4x4 Structure
The versatile 4"x4" Structure Frame is the ultimate multitasker for high-capacity facilities. This robust solution provides excellent aisle containment infrastructure support. Flanged strut arms attach to vertical posts for heavy-duty support of equipment.
-
Key Features
- Heavy-duty 4” posts provide strength to support weight without deflection
- All four sides feature multiple threaded channels for brackets and mounting
- Two extrusion sides feature integrated profile for standard 1 5/8” strut hardware
- Vertical support posts double as door frames for both sliding and hinged door systems
- Extrusion profile provides frame for fixed or sliding containment panels above servers
-
Specifications
- 4” x 4” frame system made from 6063-T6 aluminum
- Available in silver, black or white finishes
- Integrated strut profile accepts standard 1 5/8” (P1000) strut hardware fittings
- Extrusion accepts 3/8-16 bolts for supporting lighting, fire suppression or other infrastructure
- Frame accepts fixed 8mm panels or overlapping 4mm, 8mm or 10mm sliding panels

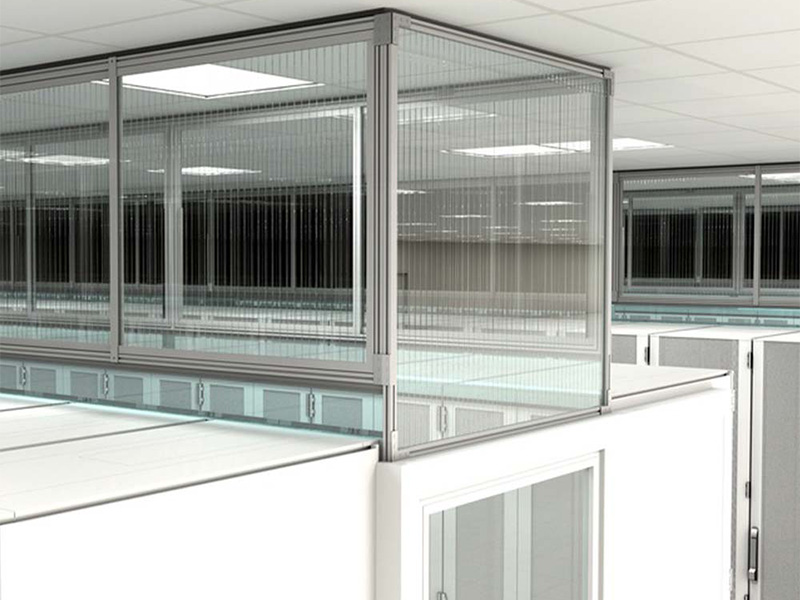

Cool Shield™ 2x2 Structure
The 2"x2" Structure Frame provides highly effective aisle containment in rooms that do not have sufficient overhead support options.
-
Key Features
- Heavy-duty 2" posts for top of server containment configurations
- All four sides feature multiple threaded channels for brackets and mounting
- Vertical support posts double as door frames for sliding door systems
- Extrusion profile provides frame for fixed containment panels above servers
-
Specifications
- 2” x 2” frame system made from 6063-T6 aluminum extrusion
- Available in silver, black or white painted finishes
- Extrusion accepts ¼-20 screws for attaching fire suppression or lighting systems
- Optional pre-assembly of some framing components
- Frame accepts fixed 6mm fixed panels or overlapping 4mm sliding panels
More Aisle Containment Solutions
Containment and Design Strategy Services
From single server rows to full-scale data centers, Armstrong provides modular, customizable solutions that adapt to your space and cooling strategy. Our design services will help you with the right solution for your data center environment.
