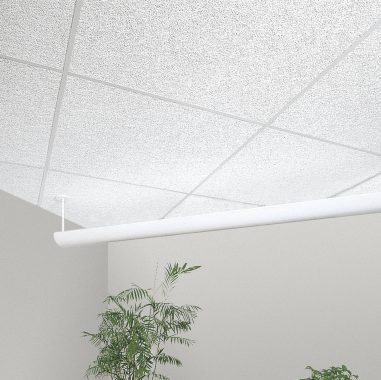

ARMATUFF
- Edge: Square Lay-In 15/16"
- Dimensions: 24" x 48"
- Thickness: 3/4"
- Shape: Rectangle
-
Acoustics:
NRC: 0.50
CAC: 35
- Fire Performance: Class A (UL)
- Light Reflectance: 87%
- Face Profile: 15/16"
REVIT
Product Details
|
Acoustics
Acoustical options available. |
|
|---|---|
|
Sound Absorption (NRC)
A measure for rating the overall sound absorption of a material when used in an enclosed architectural space where sound is reflected at many angles of incidence. A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance. |
0.50 |
|
Sound Blocking (CAC)
A measure for rating the performance of a ceiling system as a barrier to airborne sound transmission through a common plenum between adjacent closed spaces. A ceiling system with a CAC < 25 is considered low performance, whereas one with CAC of 35 or higher is high performance. |
35 |
| Fire | |
|
Fire Performance
|
Class A (UL) |
|
Light Reflectance
A high light reflective ceiling – LR 0.83 or greater, per ASTM E1477-98 as referred to in ASTM E1264-98 – makes lighting systems, especially indirect lighting, more effective while further reducing energy costs and consumption. LR values apply to White panels only. |
87% |
|
Sag/Humidity Resistance
Ceiling panels maintain humidity and sag resistance. |
HUMIGUARD Plus |
|
Insulation Value
|
R Factor-BTU: 1.70 BTU R Factor-Watts: 0.30 m2 K/W |
|
Mold/Mildew Resistance
Ceiling panels with BIOBLOCK performance resist the growth of mold and mildew on the panel surface. |
BIOBLOCK |
|
Durability
|
|
|
Impact Resistance
Surface impact based on the Striking Ball Impact Test, modified ASTM D1037 procedure. |
|
|
Scratch Resistance
Excellent resistance to surface scratching, scuffing or chipping as per Hess Rake Test. |
|
Material
|
Mineral Fiber |
|---|---|
|
Texture
|
Medium |
|
Surface Finish
|
Factory applied latex paint |
|
Shape
|
Rectangle |
|
Weight
|
1.13 lbs/SF |
|
Sq Ft (Sq Ft / Carton)
|
64 |
|
Pieces / Carton
|
8 |
|
ASTM Classification
|
Type: III, Form: 2, Pattern: C E |
|
Installation Method
|
Grid (Suspended) |
